Insulated High-voltage Air Heater (400-600V) | PTC Air Heater

Insulated High-voltage Air Heater (400-600V) | PTC Air Heater

£1.00
  • HRP High-voltage are electrically insulated PTC finned resistor heaters with high resistance to moisture and dirt for homogeneous heating of air flows

  • Power up to 2,5kW

  • Multiple voltage capability at 400 - 600V

  • High safety and energy efficiency thanks to the PTC effect

sold out
Add To Cart

Insulated High-voltage PTC Air Heater (HRP HV) up to 600V

To meet the requirement for ever-increasing performance demands, electrified systems are increasingly aiming for voltages of up to 900 volts. The numerous benefits of the voltage increase are driving technical development not only in automotive electrification, but also the entire transportation industry.

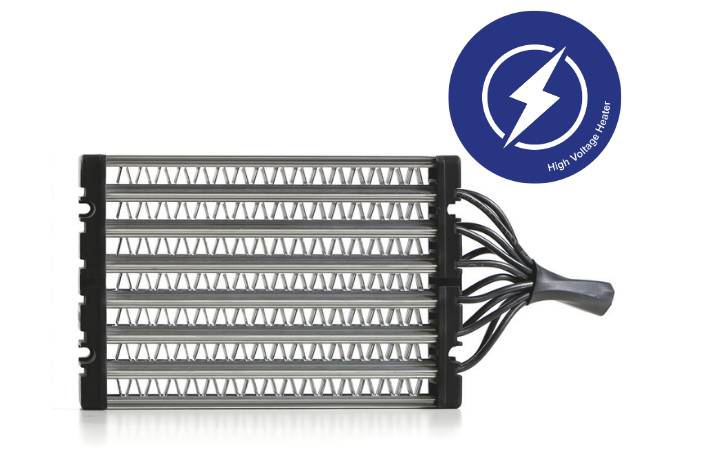

Insulated high-voltage PTC Air Heaters of the HRP HV series are powerful heaters for homogeneous heating of air flows. They consist of slim aluminum profiles with press-fitted heating elements, and heating fins in either V- or delta-shape. Cover rails at both ends are equipped with a T-slot for easy installation and for attaching accessories. Thanks to their encapsulated PTC heating elements, the HRP HV series features a higher resistance to moisture and dirt.

HRP HV are available in different versions with power outputs up to nearly 2,5kW. They come in two standard sizes (M, L) with either V- or delta-shaped fins. HRPs HV with delta fins achieve a considerably lower pressure drop with a minimally reduced power output and are particularly suitable for high-volume air flows or lower-performance fans. Insulated high-voltage air heaters are multi-voltage capable and can be operated in a voltage range from 400V to 600V. Optionally, they can be equipped with a plastic frame featuring integrated screw-on points for thermal insulation and easy installation.

PTC Air Heaters come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.

FEATURES

  • Power up to 2,5kW per heater

  • Multi-voltage capability in the range of 400 - 600V AC or DC

  • Power control of heating element is possible via PWM (please read user instructions)

  • Electrically insulated, encapsulated heating elements

  • Covering rail with 4,5mm T-slot

  • Homogeneous load with three-phase connection

  • Available in the standard sizes M and L with V- or delta-shaped fins

  • Optional: Plastic frame featuring integrated screw-on points and thermal insulation, temperature limiter (signal only), mounting slider


Technical data

Insulated High-Voltage PTC Air HeaterHRP HV MHRP HV LHRP HV MHRP HV L
Fin shapeDeltaV
Rated voltage (V)400 - 600400 - 600
Heating capacity 600V, at 20°C & 300m³/h (W)1200160015002100
Max. Inrush current 600V (A)1318,514,520
Differential pressure at 20°C, 200m³/h (Pa)291611859
Operation temperature (°C)-40 to +65-40 to +65
Ambient humidity (rH)Max. 95 %, non-condensingMax. 95 %, non-condensing
Length without frame (mm)153,6210153,6210
Length with frame (mm)174,6231174,6231
Width (mm)129,2129,2
Heating circuits (Pcs)66
Standard wire length without frame (mm)170170
Standard wire length with frame (mm)160160



FURTHER SOLUTIONS

Can’t find what you’re looking for? No problem - custom solutions are our specialty! Learn more


Accessories

Plastic frame screw-on points

Optional plastic frame; Temperature limiter clip (for plastic frame only)

T-Slot, Mounting slider with screw-on point

Mounting slider with temperature limiter

Temperature limiter- signal transmitter (for frame or mounting slider)


Application fields

Insulated High-Voltage PTC Air Heaters are widely used in special-purpose vehicles and railway applications. The flexibly applicable heaters can be used for a wide variety of applications:

Cabin heaters for special-purpose vehicles, cockpit heaters (e.g. forklifts, cranes, construction machinery), heating of railway applications, and more.

These products are based on a modular system and are suitable for a wide range of applications. Please always consult with our sales team to discuss your specific application - we are happy to assist!
