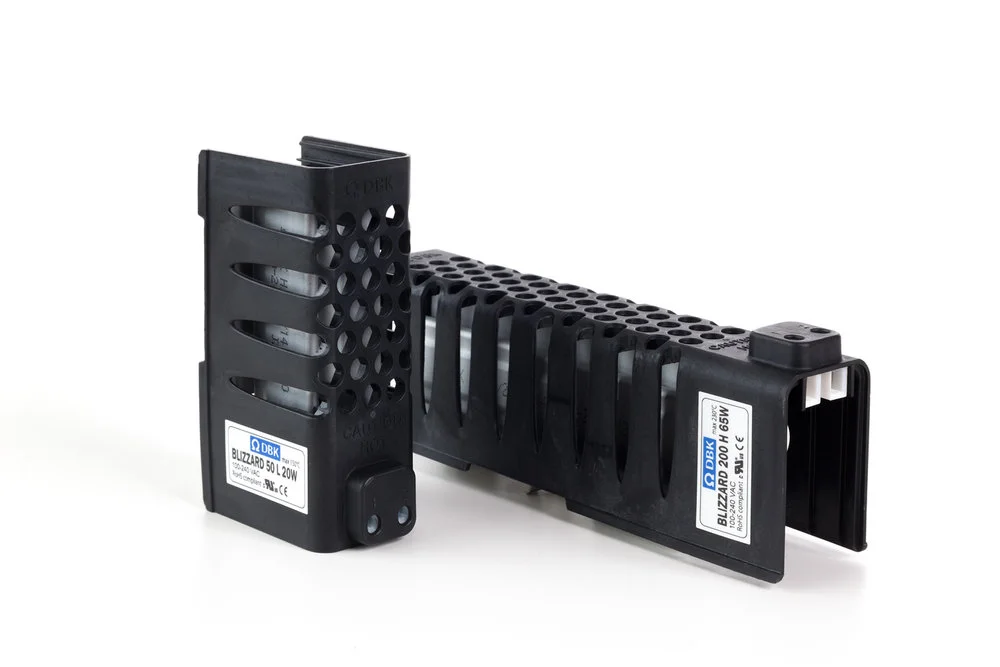

Blizzard Series | PTC Convection Heater
Blizzard Series | PTC Convection Heater
Blizzard convection heaters have PTC (positive temperature coefficient) technology in them, which make them safe and efficient
Power 20 - 64W
Voltage 100 - 240V
Blizzard Series
The Blizzard convection heaters have PTC (positive temperature coefficient) technology in them, which make them safe and efficient. We offer a wide range of models in various designs and performance capabilities to fit your application requirements.
Features:
Dual Voltage 100 - 240V
UL94V-0 high temperature plastic housing
Touch safe heater (temperature does not exceed 74°C (L-Version) and 105°C (H-Version)*
Optimized for low inrush current
Self-regulating (highest power at low ambient temperature)
Finger guard with integrated terminal block for safe and easy connection
Mounting: 35mm DIN rail clip (EN60715)
RoHS compliant (EU Directive 2002/95/EC)
DOWNLOADS
Technical data
| Blizzard | 50 L 20 W | 200 L 30 W | 50 H 40 W | 200 H 65 W | |
|---|---|---|---|---|---|
| Nominal Power Output (at 25°C / 230V) | (W) | 20 | 30 | 40 | 65 |
| Inrush Current 230V/115V | (A) | 0,6 / 0,8 | 1,8 / 2,2 | 1,6 / 2,0 | 5,5 / 5,5 |
| Maximum Body Temperature | (°C) | 74 | 105 | ||
| Protection Class | II | ||||
| Ingress Protection | IP 20 | ||||
| Storage Temperature | (°C) | - 40 to +70 | |||
| Operating Temperature | (°C) | - 30 to +70 | |||
| Nominal Input Voltage | (V) | 100 - 240 AC | |||
| Nominal Input Frequency | (Hz) | 50 - 60 | |||
| Dimensions cross section | (mm) | 35,5 x 57 | |||
| Length | (mm) | 97,5 | 157,5 | 97,5 | 157,5 |
| Connector Block | (AWG) | 12 - 24 | |||
| Weight | (g) | 100 | 160 | 100 | 160 |
FURTHER SOLUTIONS
Can’t find what you’re looking for? No problem - custom solutions are our specialty! Learn more
Application fields
PTC Convection Heaters of the Blizzard series are widely used in the electrical cabinet, payment & access system, telecom and renewable energy industries. The flexibly applicable heaters can be used for a wide variety of applications:
Enclosure heating, heating of outdoor cabins, display heating, frost protection in ATMs / ticket machines / parking ticket machines, frost protection of mechanical components in wind turbines, heating of fuel dispensers, energy ports, access systems, etc.
Compact PTC Convection Heater for moisture and frost protection in electrical cabinets & enclosures
Power 20 - 75W
Multi-voltage capability at 110 – 240V
High safety and energy efficiency thanks to the PTC effect
Worldwide approvals: CE, VDE, UL
