PTC Air Heater HRKK with patented delta-shaped fins for homogeneous heating of air flows at low pressure drop
Power up to 2kW
Voltage 230V
High safety and energy efficiency thanks to the PTC effect

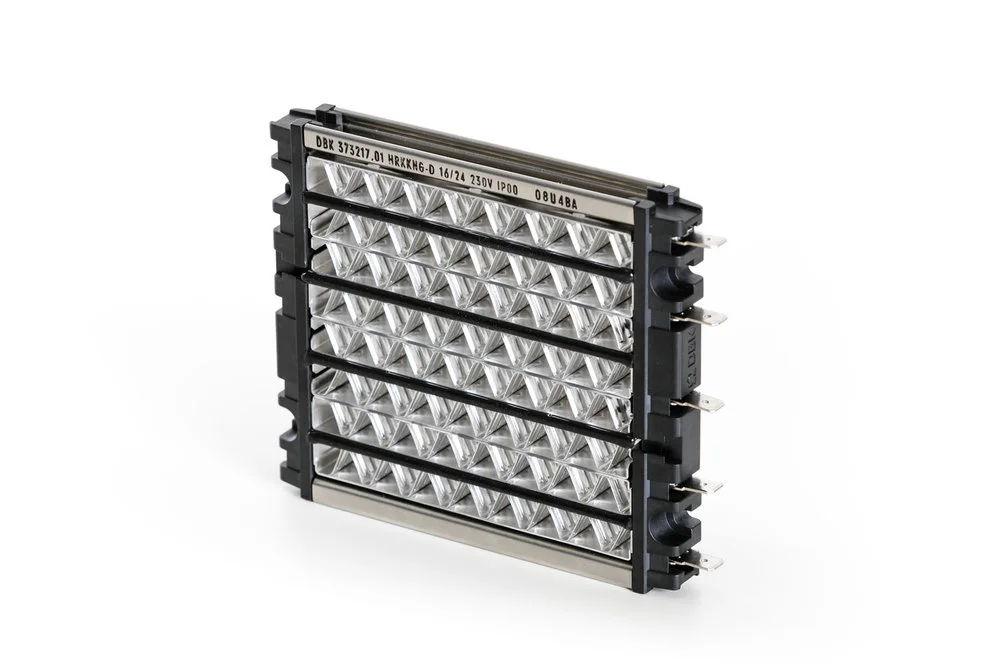

PTC Air Heater with Delta-Shaped Fins (HRKK Delta)
PTC Air Heaters of the HRKK Delta series are powerful heaters for homogeneous heating of air flows. They alternately consist of PTC heating elements and delta-shaped heating fins. The delta-shaped fins were specially designed for large air flows and have a significantly lower pressure drop compared to the classic V-shaped fins. HRKK Delta are particularly suitable as pre- or post-heaters in air conditioning & ventilation systems, or as cabin heaters in special-purpose vehicles.
PTC Air Heaters HRKK Delta are available in three standard sizes S, M, L with power up to 2kW. They feature a plastic frame with integrated screw-on points and are suitable for a voltage of 230V.
PTC Air Heaters come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.
FEATURES
Power up to 2kW per heater
Can be operated at 230V AC or DC
Switching or cycling of individual heating circuits is possible
Available in standard sizes S, M, L with delta-shaped fins
Plastic frame with integrated screw-on points for easy installation
Optional: Mounting frame, temperature limiter
Customer solutions (size, voltage, power) on request
Technical data
| PTC Air Heater HRKK Delta | HRKK S | HRKK M | HRKK L | |
|---|---|---|---|---|
| Fin shape | Delta | |||
| Rated voltage | (V) | 230 | 230 | 230 |
| Power output | at 20°C, 300m³/h | (W) | 1100 | 1375 | 1500 |
| Inrush current | (A) | 8 | 12 | 14 |
| Differential pressure | at 20°C, 300m³/h | (Pa) | 72 | 26 | 21 |
| Dimensions Length L1 | (mm) | 120,6 | 174,6 | 198 |
| Dimensions Length L2 | (mm) | 114,6 | 168,6 | 192 |
| Dimensions Length L3 | (mm) | 96 | 150 | 174 |
| Heating circuits | (Pcs) | 4 | 4 | 4 |
FURTHER SOLUTIONS
Can’t find what you’re looking for? No problem - custom solutions are our specialty! Learn more
Application fields
PTC Air Heaters of the HRKK Delta series are widely used in the railway, electric vehicle, special-purpose vehicle and HVAC industries. The flexibly applicable heaters can be used for a wide variety of applications:
Heating of railway applications, cabin heater for special-purpose vehicles, cockpit heaters (e.g. electric vehicles), control cabinet heaters, air dryer & dehumidifier, pre- or post-heaters for air conditioning and ventilation systems with heat recovery (low-energy houses), etc.
