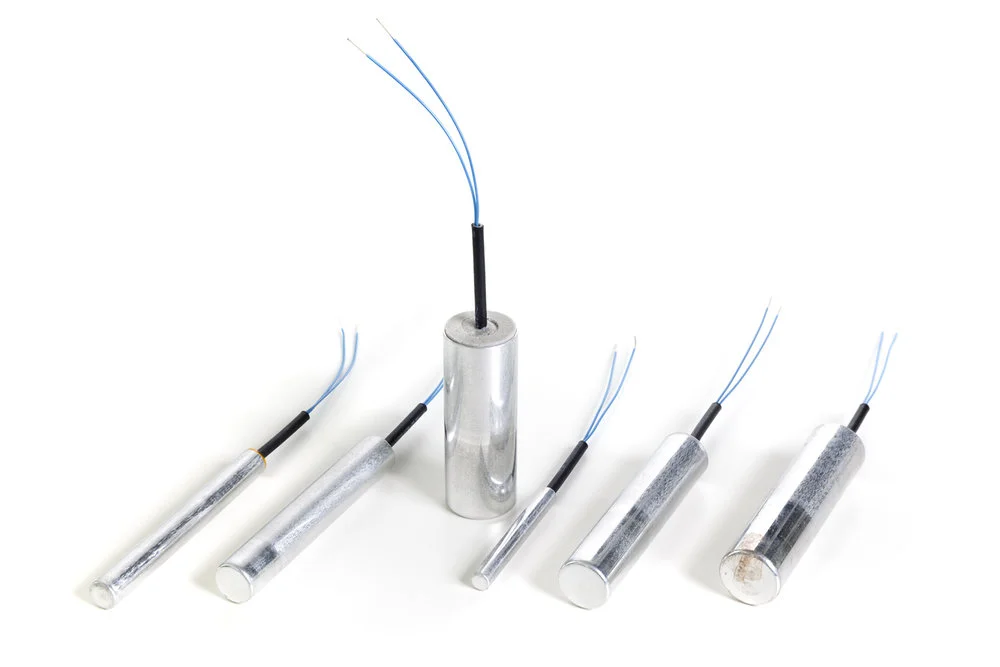

Ceramic Cartridge Heaters (PSA)

Self-regulating heating element in a round shape with aluminum casing. The PSA model is in the form of an aluminium cup.

FEATURES

Compact heating element
Simple mounting
Optimum heat transfer through the aluminum casing.
Various performance ranges available

Downloads

Data sheet PSA

Request product

Technical data

Cartridge Type	Voltage	Diameter	Length	Power	Surface temperature
PSA-060-48-XX	110 - 240V	6mm	48mm	11W	80°C
				28W	140°C
				52W	220°C
PSA-090-75-XX	110 - 240V	9mm	75mm	26W	80°C
				45W	140°C
				113W	220°C
PSA-130-75-XX	110 - 240V	13mm	75mm	21W	80°C
				38W	130°C
				110W	220°C
PSA-160-75-XX	110 - 240V	16mm	75mm	19W	80°C
				33W	130°C
				102W	210°C
PSA-180-75-XX	110 - 240V	18mm	75mm	19W	80°C
				31W	120°C
				89W	210°C
PSA-220-60-XX	110 - 240V	22mm	60mm	17W	80°C
				29W	120°C
				72W	200°C
PSA-060-48-XX	12 - 24V	6mm	48mm	20W	70°C
				59W	165°C
				76W	230°C
PSA-090-75-XX	12 - 24V	9mm	75mm	31W	75°C
				96W	165°C
				132W	220°C
PSA-130-75-XX	12 - 24V	13mm	75mm	30W	75°C
				78W	165°C
				86W	210°C
PSA-160-75-XX	12 - 24V	16mm	75mm	20W	70°C
				61W	165°C
				76W	200°C
PSA-180-75-XX	12 - 24V	18mm	75mm	20W	70°C
				61W	160°C
				75W	200°C
PSA-220-60-XX	12 - 24V	22mm	60mm	17W	65°C
				54W	155°C
				64W	190°C

FURTHER SOLUTIONS

Can’t find what you’re looking for? No problem - custom solutions are our specialty! Learn more

Application fields

PTC Cartridge Heaters of the PSA series are widely used in the mechanical & plant engineering, medial & laboratory, transportation and catering industries. The flexibly applicable heaters can be used for a wide variety of applications:

Sensor heating, grip heating, pipe trace heating, valve heating, nozzle heating, footstep heating, heating of analysis liquids and medical equipment, warming trays, etc.
