Robust PTC Screw-in Cartridge Heater in circular design with stainless steel housing, G1/2 thread and hexagon for precise heating of solids or liquids
Power up to 100W
Multi-voltage capability at 110 - 240V, 12 - 24V
Optional with cable gland IP68
High safety and energy efficiency thanks to the PTC effect
PTC Screw-In Cartridge Heater (ESH)
PTC Cartridge Heaters of the ESH series are dynamic heating elements for precise heating of solids and liquids. They consist of a contacted PTC heating element in a corrosion resistant stainless steel housing with G1/2 thread and hexagon. Their robust and circular design allows for easy and space-saving integration into the customer application.
ESH Cartridge Heaters with stainless steel housing, G1/2 thread and hexagon are available in different power version up to 100W, suitable for a voltage range of 110-240V or 12-24V.
PTC Cartridge Heaters of the ESH series come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.
FEATURES
Power up to 100W
Multi-voltage capability in the range of 110 - 240V AC/DC, 12 - 24V AC/DC

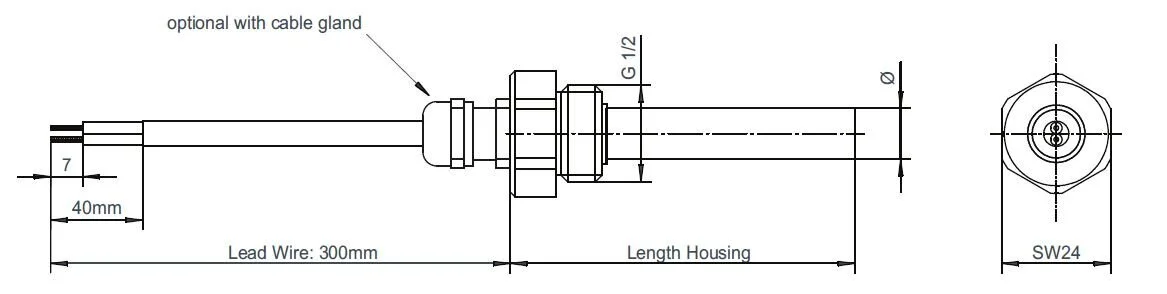

Corrosion resistant stainless steel housing with G1/2 thread and hexagon
Optional with cable gland IP68
Technical data
| PTC Screw-In Cartridge Heaters | ESH-110-75 | ESH-100-55 | ||
|---|---|---|---|---|
| Voltage range (V) | 110 - 240 | 12 - 24 | 110 - 240 | 12 - 24 |
| Power output max. (W) | 97 | 98 | 78 | 68 |
| Max. surface temperature (°C) | 220 | 220 | 215 | 210 |
| Housing diameter (mm) | 11 | 10 | ||
| Length (mm) | 75 | 55 | ||
FURTHER SOLUTIONS
Can’t find what you’re looking for? No problem - custom solutions are our specialty! Learn more
Application fields
PTC Cartridge Heaters of the ESH series are widely used in the mechanical & plant engineering, medial & laboratory, transportation and catering industries. The flexibly applicable heaters can be used for a wide variety of applications:
Sensor heating, grip heating, pipe trace heating, valve heating, nozzle heating, footstep heating, heating of analysis liquids and medical equipment, warming trays, etc.
