Cartridge Heater PSS | PTC Contact Heater
Cartridge Heater PSS | PTC Contact Heater
Compact PTC Cartridge Heater with circular silicone housing for precise heating of solids or liquid containers
Power up to 80W
Multi-voltage capability at 110 - 240V, 12 - 24V
High safety and energy efficiency thanks to the PTC effect
Worldwide approvals: CE, VDE, UL

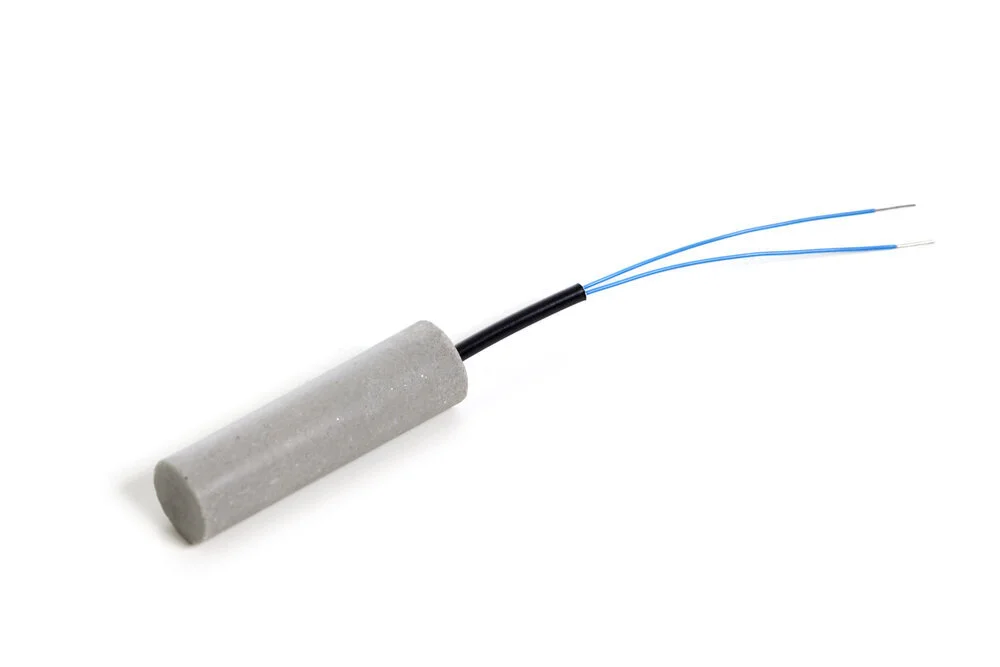

PTC Cartridge Heater PSS
PTC Cartridge Heaters of the PSS series are dynamic heating elements for precise heating of solids and liquid containers. They consist of a contacted PTC heating element in a silicone housing for optimum heat transfer through the expansion of the material. Their compact and circular design allows for easy and space-saving integration into the customer application.
PSS Cartridge Heaters with silicone housing are available in different power version up to 80W, suitable for a voltage range of 110-240V or 12-24V.
PTC Cartridge Heaters of the PSS series come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature. High operational reliability and energy efficiency without any additional switching elements.
FEATURES
Power up to 80W
Multi-voltage capability in the range of 110 - 240V AC/DC, 12 - 24V AC/DC
Circular design with silicone housing
Optimum heat transfer through pressure application
Technical data
| PTC Cartridge Heaters | PSS-069-43 | PSS-089-50 | PSS-110-50 | PSS-138-60 | PSS-149-60 | PSS-171-60 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Voltage range (V) | 110 - 240 | 12 - 24 | 110 - 240 | 12 - 24 | 110 - 240 | 12 - 24 | 110 - 240 | 12 - 24 | 110 - 240 | 12 - 24 | 110 - 240 | 12 - 24 |
| Power output max. (W) | 35 | 50 | 60 | 52 | 68 | 62 | 82 | 52 | 80 | 49 | 73 | 46 |
| Max. surface temperature (°C) | 210 | 200 | 205 | 195 | 205 | 205 | 195 | 200 | 205 | 190 | 195 | 180 |
| Housing diameter (mm) | 6,9 | 8,9 | 11 | 13,8 | 14,9 | 17,1 | ||||||
| Length (mm) | 43 | 50 | 50 | 60 | 60 | 60 | ||||||
FURTHER SOLUTIONS
Can’t find what you’re looking for? No problem - custom solutions are our specialty! Learn more
Application fields
PTC Cartridge Heaters of the PSS series are widely used in the mechanical & plant engineering, medial & laboratory, transportation and catering industries. The flexibly applicable heaters can be used for a wide variety of applications:
Sensor heating, grip heating, pipe trace heating, valve heating, nozzle heating, footstep heating, heating of analysis liquids and medical equipment, warming trays, etc.
